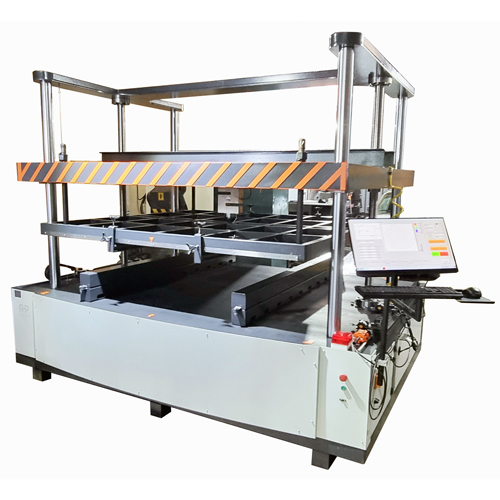

Pallet and Box Compression Tester-100KN-130x130x60

The European and ISO standards define pallet load testing as the only way of working, since this approach as close as possible the reality testing. Most countries conducts pallet tests according to the ISO 8611: Pallets for materials handling — Flat pallets. This shows that some pallets are too heavily loaded in reality which could occur damage in the logistic chain. On the other hand, sometimes too strong pallets are delivered. Less material could then be used, which can yield a profit on large quantities

SKU: 00140-1 Categories: , ,

Description

  • Including software for automatic compression testing //
  • According to ISO 8611 //
  • Capacity maximum 100KN //
  • Load resolution 1/10000 //
  • Displacement resolution 1/1000 //
  • Displacement accuracy ≤0.5% //
  • Speed range 1-100 mm/min //
  • Max crosshead travel 60 cm (Between test platens) //
  • Maximum travel distance of linear transducers 300mm //
  • Self align loading plate //
  • Magnetic base for placement of measurement point to any location under sample piece //
  • German ball screws //
  • Two ball screws and 4 chrome shaft guides //
  • PLC controlled //
  • Suitable for stacking test //
  • Forklift and compression tests //
  • Windows-based software //
  • Reporting in MS EXCEL //
  • Overload protection //
  • Travel limit switches //
  • Servomotor controlled //
  • Hard chrome guide shafts //
  • Linear guide for displacement of linear transducers on both sides of measurement table //
  • Power consumption about 1KW //
  • Power 220V-50Hz //
  • Load cell 100KN //
  • Training video is included //
  • Windows based software //
  • Connection to PC is USB port //
  • Compression pressure plate 1300x1300mmx100mm //
  • Connection port is USB //
  • Software is included //
  • Software will do full test cycle automatically //
  • Reporting in MS EXCEL //
  • Basic machine has only one displacement measurement point //
  • Machine has linear transducer input for displacement measurement in 5 points that will be added according to customer request //
  • Laptop and ergo arm for assembly will be quoted separately //
  • Includes test setup for bending test according to ISO 6259-1(Figure1) //
  • Includes test setup for forklifting test according to ISO 6259-1 (Figure2) //
  • Includes load applicator for corner compression test according to ISO 6259-1 (Figure3) //
  • Includes test setup for deck strength and stiffness test according to ISO 6259-1 (Figure4) //
  • Includes test setup for bottom deck strength and stiffness test according to ISO 6259-1 (Figure5) //
  • Includes test setup for wing pallet bending test according to ISO 6259-1 (Figure 6) //
  • Online distance remote support for software
